Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.8375 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.

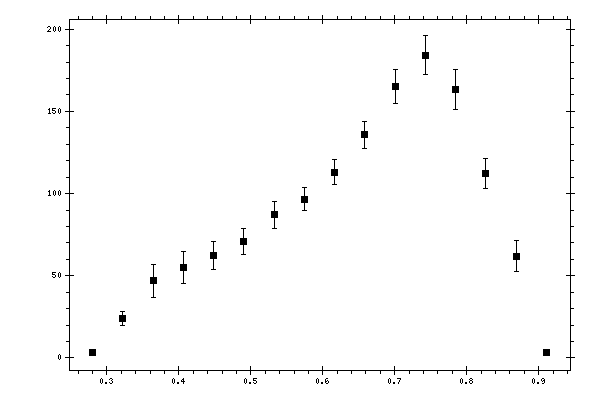

Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.280139 | 2.99759 | 0.108024 |
| 0.322177 | 24.119 | 4.39899 |
| 0.364215 | 46.8272 | 9.93643 |
| 0.406253 | 55.0083 | 9.62341 |
| 0.448292 | 62.3292 | 8.42286 |
| 0.49033 | 71.0112 | 7.91938 |
| 0.532368 | 87.1181 | 8.35391 |
| 0.574406 | 96.6475 | 6.94294 |
| 0.616444 | 113.131 | 7.56536 |
| 0.658482 | 135.758 | 8.307 |
| 0.70052 | 165.397 | 10.3019 |
| 0.742558 | 184.105 | 11.8827 |
| 0.784597 | 163.143 | 12.1485 |
| 0.826635 | 112.325 | 9.11226 |
| 0.868673 | 61.9032 | 9.51676 |
| 0.910711 | 3.21921 | 0.109466 |
