Parameter (X axis): θ(π−), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.8375 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb
Parameter (X axis): θ(π−), rad |
Click here to get data in text file, delimited with tabs.

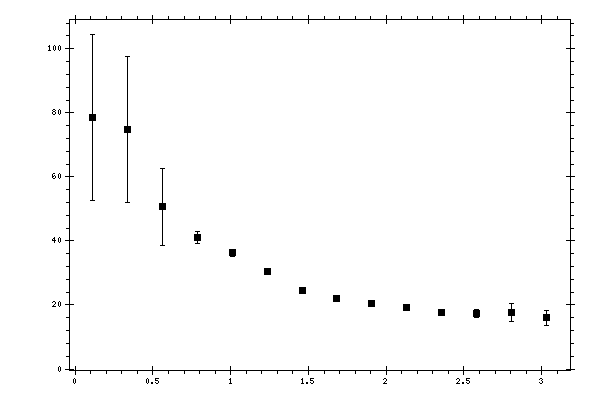

Measured data:
|
θ(π−),
rad |
dσ/d(−cos(θ(π−))),
mcb |
Data errors,
mcb |
|---|---|---|
| 0.1122 | 78.5656 | 25.8778 |
| 0.336599 | 74.7008 | 22.8468 |
| 0.560999 | 50.7087 | 12.0434 |
| 0.785398 | 41.0859 | 1.74787 |
| 1.0098 | 36.2783 | 1.11164 |
| 1.2342 | 30.5167 | 0.640173 |
| 1.4586 | 24.6664 | 0.497107 |
| 1.683 | 22.0282 | 0.501751 |
| 1.9074 | 20.3181 | 0.343899 |
| 2.1318 | 19.0524 | 0.374476 |
| 2.35619 | 17.5932 | 0.412953 |
| 2.58059 | 17.3476 | 1.23438 |
| 2.80499 | 17.6117 | 2.79077 |
| 3.02939 | 16.0244 | 2.355 |
