Parameter (X axis): θ(π+), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.8375 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb
Parameter (X axis): θ(π+), rad |
Click here to get data in text file, delimited with tabs.

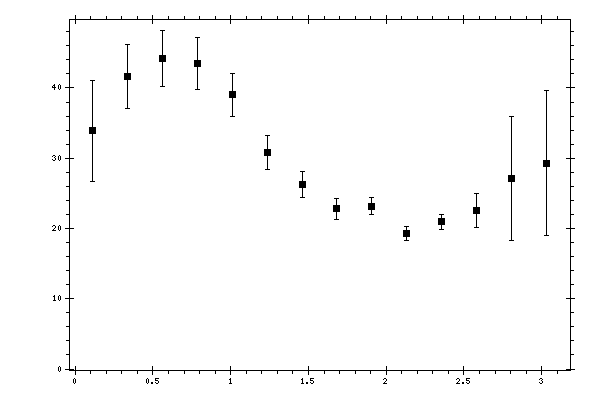

Measured data:
|
θ(π+),
rad |
dσ/d(−cos(θ(π+))),
mcb |
Data errors,
mcb |
|---|---|---|
| 0.1122 | 33.9121 | 7.18075 |
| 0.336599 | 41.6372 | 4.54752 |
| 0.560999 | 44.2292 | 3.94867 |
| 0.785398 | 43.4721 | 3.7597 |
| 1.0098 | 39.0218 | 3.01975 |
| 1.2342 | 30.8485 | 2.42013 |
| 1.4586 | 26.2487 | 1.87897 |
| 1.683 | 22.7989 | 1.47397 |
| 1.9074 | 23.1933 | 1.20124 |
| 2.1318 | 19.3056 | 1.00613 |
| 2.35619 | 20.955 | 1.10224 |
| 2.58059 | 22.5744 | 2.47291 |
| 2.80499 | 27.0905 | 8.86303 |
| 3.02939 | 29.3208 | 10.3074 |
