Parameter (X axis): θ(p), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.8375 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb
Parameter (X axis): θ(p), rad |
Click here to get data in text file, delimited with tabs.

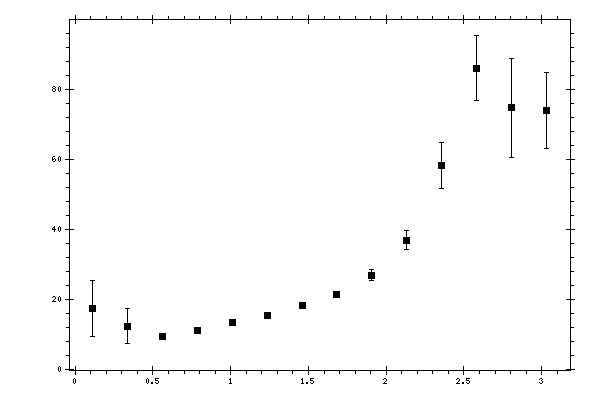

Measured data:
|
θ(p),
rad |
dσ/d(−cos(θ(p))),
mcb |
Data errors,
mcb |
|---|---|---|
| 0.1122 | 17.2558 | 7.9138 |
| 0.336599 | 12.2673 | 4.9502 |
| 0.560999 | 9.32325 | 0.923866 |
| 0.785398 | 11.0334 | 0.300475 |
| 1.0098 | 13.1551 | 0.0371003 |
| 1.2342 | 15.2846 | 0.073 |
| 1.4586 | 18.295 | 0.330204 |
| 1.683 | 21.3007 | 0.589128 |
| 1.9074 | 26.8431 | 1.53646 |
| 2.1318 | 36.7886 | 2.70902 |
| 2.35619 | 58.1815 | 6.5006 |
| 2.58059 | 86.0557 | 9.33033 |
| 2.80499 | 74.6954 | 14.0818 |
| 3.02939 | 73.891 | 10.7715 |
