Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.8625 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

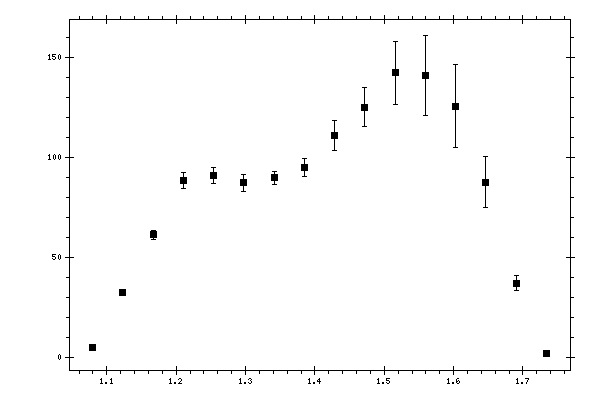

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.07963 | 5.11865 | 0.140164 |
| 1.12323 | 32.5431 | 1.45935 |
| 1.16683 | 61.2117 | 2.40672 |
| 1.21043 | 88.4145 | 3.98613 |
| 1.25403 | 90.687 | 4.01057 |
| 1.29763 | 87.1963 | 4.26948 |
| 1.34123 | 89.7973 | 3.33463 |
| 1.38483 | 94.9473 | 4.56427 |
| 1.42844 | 110.939 | 7.37527 |
| 1.47204 | 125.113 | 9.91919 |
| 1.51564 | 142.209 | 15.8171 |
| 1.55924 | 140.932 | 19.7975 |
| 1.60284 | 125.617 | 20.7798 |
| 1.64644 | 87.6339 | 12.5604 |
| 1.69004 | 37.1694 | 3.78289 |
| 1.73364 | 2.13429 | 0.029851 |
