Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.8625 GeV |
|---|
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

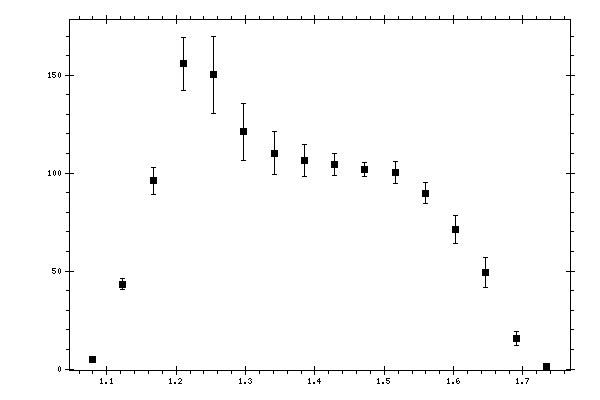

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.07963 | 4.8633 | 0.0456514 |
| 1.12323 | 43.3564 | 2.61764 |
| 1.16683 | 96.0674 | 6.72219 |
| 1.21043 | 155.915 | 13.5424 |
| 1.25403 | 150.117 | 19.6424 |
| 1.29763 | 121.056 | 14.4124 |
| 1.34123 | 110.257 | 10.8969 |
| 1.38483 | 106.49 | 8.23478 |
| 1.42844 | 104.545 | 5.50311 |
| 1.47204 | 101.76 | 3.43565 |
| 1.51564 | 100.176 | 5.52215 |
| 1.55924 | 89.7865 | 5.34127 |
| 1.60284 | 71.1989 | 7.21391 |
| 1.64644 | 49.2229 | 7.55236 |
| 1.69004 | 15.6712 | 3.70691 |
| 1.73364 | 1.18009 | 0.0650628 |
