Parameter (X axis): θ(p), rad
You are not logged in.
Experiment: g11, 2005
Spokespersons: E. Golovach
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| W : | 1.8625 GeV |
|---|
|

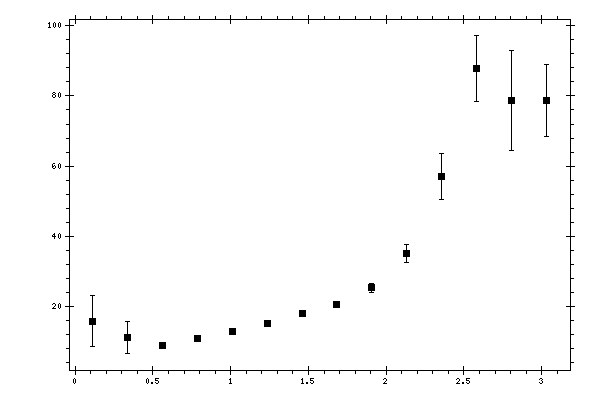

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb
Parameter (X axis): θ(p), rad |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
rad |
dσ/d(−cos(θ(p))),
mcb |
Data errors,
mcb |
|---|---|---|
| 0.1122 | 15.8566 | 7.24504 |
| 0.336599 | 11.3611 | 4.56073 |
| 0.560999 | 9.07669 | 0.741246 |
| 0.785398 | 10.8856 | 0.134048 |
| 1.0098 | 12.9369 | 0.170834 |
| 1.2342 | 15.329 | 0.0339603 |
| 1.4586 | 18.056 | 0.234188 |
| 1.683 | 20.5559 | 0.478143 |
| 1.9074 | 25.4039 | 1.34668 |
| 2.1318 | 35.0715 | 2.55042 |
| 2.35619 | 57.0031 | 6.59544 |
| 2.58059 | 87.7698 | 9.31728 |
| 2.80499 | 78.7548 | 14.2444 |
| 3.02939 | 78.6212 | 10.2557 |
