Measurement E18M16

You are not logged in.

Experiment: E89-004, 2005

Spokespersons: R. A. Schumacher

Experiment comment: Correlated data on W & cos(theta) distribution are available in E18M37 and E18M38 measurements.

Publication:

R. Bradford, R. A. Schumacher, and CLAS Collaboration First Measurement of Beam-Recoil Observables Cx and Cz in Hyperon Photoproduction // Submitted to Physical Review C

Quantity measured: C_z, dimensionless
Spin transfer coefficient C_z for circularly polarized photon beam and recoiling polarized hyperons.
Beam: γ, polarization: circular
Target: p (Z=1, A=1), polarization: none
Final state: K⁺ Λ, polarization: none

W :	2.035 GeV
E_γ :	1.737 GeV

Observable quantity measured (Y axis): C_z, dimensionless

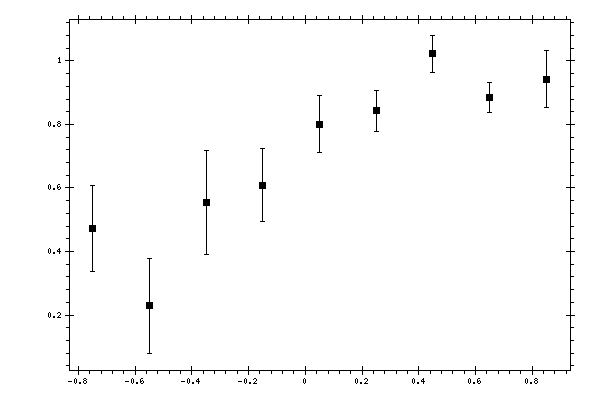

Plot measurement data

Parameter (X axis): cos(θ), dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

cos(θ), dimensionless	C_z, dimensionless	Data errors, dimensionless
-0.75	0.472	0.136
-0.55	0.229	0.149
-0.35	0.554	0.163
-0.15	0.608	0.115
0.05	0.801	0.089
0.25	0.843	0.064
0.45	1.022	0.057
0.65	0.886	0.047
0.85	0.942	0.09
