Measurement E18M21

You are not logged in.

Experiment: E89-004, 2005

Spokespersons: R. A. Schumacher

Experiment comment: Correlated data on W & cos(theta) distribution are available in E18M37 and E18M38 measurements.

Publication:

R. Bradford, R. A. Schumacher, and CLAS Collaboration First Measurement of Beam-Recoil Observables Cx and Cz in Hyperon Photoproduction // Submitted to Physical Review C

Quantity measured: C_x, dimensionless
Spin transfer coefficient C_x for circularly polarized photon beam and recoiling polarized hyperons.
Beam: γ, polarization: circular
Target: p (Z=1, A=1), polarization: none
Final state: K⁺ Λ, polarization: none

W :	2.17 GeV
E_γ :	2.039 GeV

Observable quantity measured (Y axis): C_x, dimensionless

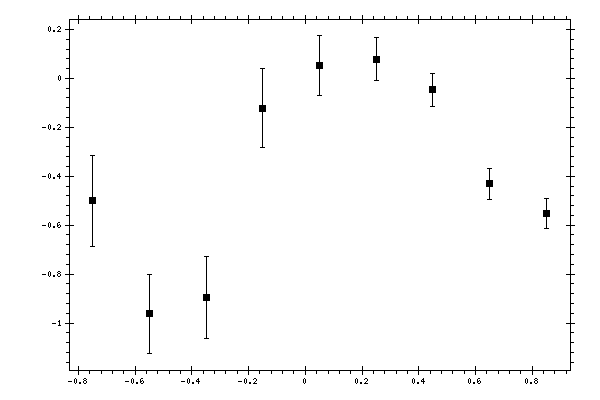

Plot measurement data

Parameter (X axis): cos(θ), dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

cos(θ), dimensionless	C_x, dimensionless	Data errors, dimensionless
-0.75	-0.501	0.186
-0.55	-0.962	0.161
-0.35	-0.896	0.168
-0.15	-0.121	0.161
0.05	0.053	0.121
0.25	0.078	0.088
0.45	-0.047	0.068
0.65	-0.431	0.062
0.85	-0.552	0.061
