Parameter (X axis): W, GeV
You are not logged in.
Experiment: e1e, 2022
Spokespersons: Y. Tian, R. W. Gothe V.I. Mokeev, and G. Hollis
Experiment comment: Q2 : 0.4 — 1.0 GeV2 W : up to 1.825 GeV Ebeam : 2.039 GeV
Measurement comment: Quasi-free Legendre moment
Publication:
Quantity measured: C0 (Legendre moment), mcbn/sterad
C0 (Legendre moment)
Beam: e, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: π− p, polarization: none
| Q2 : | 0.5 GeV2 | |
|---|---|---|
| W : | 1.1875 — 1.7125 GeV | |
| Ebeam : | 2.039 GeV |
|

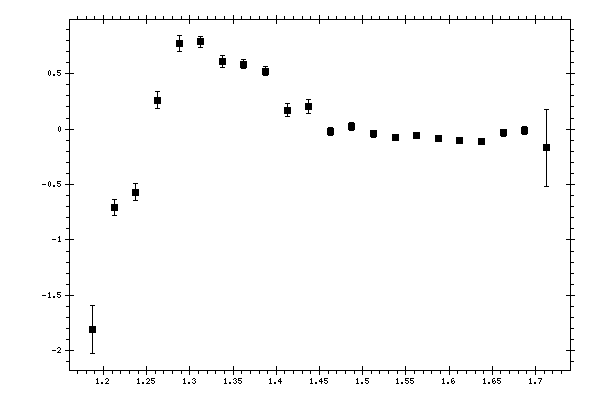

Observable quantity measured (Y axis): C0 (Legendre moment), mcbn/sterad
Parameter (X axis): W, GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
W,
GeV |
C0 (Legendre moment),
mcbn/sterad |
Data errors,
mcbn/sterad |
Systematic errors,
mcbn/sterad |
|---|---|---|---|
| 1.1875 | -1.80679 | 0.213363 | 0.555417 |
| 1.2125 | -0.706265 | 0.0753956 | 0.297017 |
| 1.2375 | -0.568201 | 0.0749644 | 0.537925 |
| 1.2625 | 0.260253 | 0.0747431 | 0.204893 |
| 1.2875 | 0.771394 | 0.0692672 | 0.235138 |
| 1.3125 | 0.787891 | 0.0513225 | 0.286064 |
| 1.3375 | 0.610904 | 0.0516151 | 0.178073 |
| 1.3625 | 0.586004 | 0.0427867 | 0.180949 |
| 1.3875 | 0.521909 | 0.0413353 | 0.180239 |
| 1.4125 | 0.169416 | 0.0579637 | 0.141911 |
| 1.4375 | 0.203531 | 0.0599291 | 0.10908 |
| 1.4625 | -0.0227244 | 0.0368336 | 0.0794156 |
| 1.4875 | 0.023055 | 0.0331926 | 0.102598 |
| 1.5125 | -0.043158 | 0.0300868 | 0.0509769 |
| 1.5375 | -0.0757901 | 0.0277892 | 0.0359808 |
| 1.5625 | -0.0573428 | 0.0286449 | 0.0373773 |
| 1.5875 | -0.0870185 | 0.0272011 | 0.0390557 |
| 1.6125 | -0.0996497 | 0.0272766 | 0.0339393 |
| 1.6375 | -0.110682 | 0.0275135 | 0.0289044 |
| 1.6625 | -0.033875 | 0.0293157 | 0.034341 |
| 1.6875 | -0.0151229 | 0.0379557 | 0.0334716 |
| 1.7125 | -0.169678 | 0.349362 | 0.101088 |
