Measurement E19M21

You are not logged in.

Experiment: E89-004, 2005

Spokespersons: R. A. Schumacher

Experiment comment: Correlated data on W & cos(theta) distribution are available in E19M33 and E19M34 measurements.

Publication:

R. Bradford, R. A. Schumacher, and CLAS Collaboration First Measurement of Beam-Recoil Observables Cx and Cz in Hyperon Photoproduction // Submitted to Physical Review C

Quantity measured: C_x, dimensionless
Spin transfer coefficient C_x for circularly polarized photon beam and recoiling polarized hyperons.
Beam: γ, polarization: circular
Target: p (Z=1, A=1), polarization: none
Final state: K⁺ Σ⁰, polarization: none

W :	2.255 GeV
E_γ :	2.24 GeV

Observable quantity measured (Y axis): C_x, dimensionless

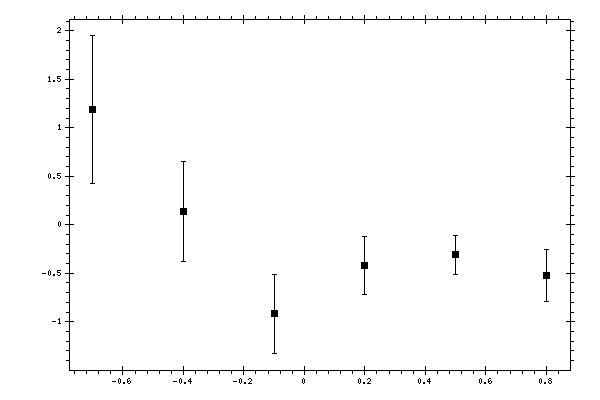

Plot measurement data

Parameter (X axis): cos(θ), dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

cos(θ), dimensionless	C_x, dimensionless	Stat. error, dimensionless
-0.7	1.186	0.761
-0.4	0.134	0.515
-0.1	-0.92	0.404
0.2	-0.424	0.3
0.5	-0.312	0.203
0.8	-0.521	0.267
