Measurement E19M4

You are not logged in.

Experiment: E89-004, 2005

Spokespersons: R. A. Schumacher

Experiment comment: Correlated data on W & cos(theta) distribution are available in E19M33 and E19M34 measurements.

Publication:

R. Bradford, R. A. Schumacher, and CLAS Collaboration First Measurement of Beam-Recoil Observables Cx and Cz in Hyperon Photoproduction // Submitted to Physical Review C

Quantity measured: C_z, dimensionless
Spin transfer coefficient C_z for circularly polarized photon beam and recoiling polarized hyperons.
Beam: γ, polarization: circular
Target: p (Z=1, A=1), polarization: none
Final state: K⁺ Σ⁰, polarization: none

W :	1.839 GeV
E_γ :	1.332 GeV

Observable quantity measured (Y axis): C_z, dimensionless

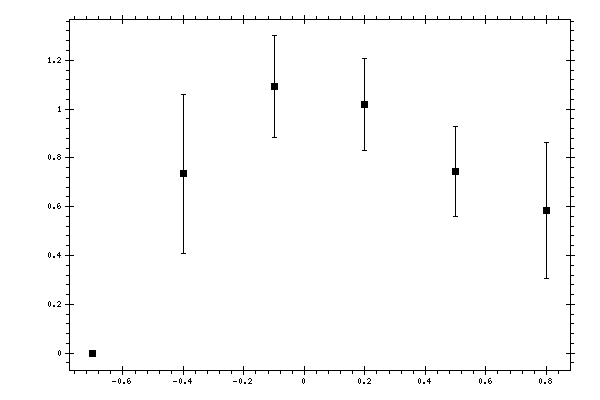

Plot measurement data

Parameter (X axis): cos(θ), dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

cos(θ), dimensionless	C_z, dimensionless	Data errors, dimensionless
-0.7	0	0
-0.4	0.734	0.325
-0.1	1.092	0.208
0.2	1.019	0.189
0.5	0.744	0.184
0.8	0.585	0.279
