Experiment: CLAS12 RG-K, 2022
Spokespersons: Daniel S. Carman
Measurement comment: Coordinate system:
(x,y,z), z along virtual photon direction, y normal to electron scattering plane, x=y x z
Q2 bin: [0.9:0.3] GeV^2
cos(θKc.m.) bin: [-1.0:-0.5]
Publication:
Quantity measured: P′x,
x projection of beam-recoil transferred polarization P′ in (x,y,z) system
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: K+ Σ0, polarization: polarized
Q2 : | 0.3 — 0.9 GeV2 | |
---|---|---|
W : | 1.6 — 2.4 GeV | |
Ebeam : | 6.535 GeV |

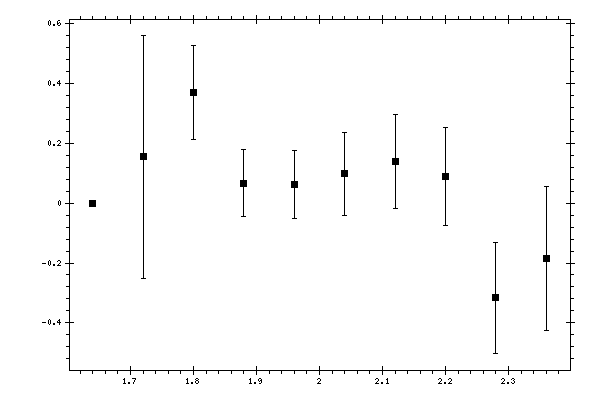

Observable quantity measured (Y axis): P′x,
Parameter (X axis): W, GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
W,
GeV |
P′x | Data errors | Systematic errors |
---|---|---|---|
1.64 | 0 | 0 | 0 |
1.72 | 0.1546 | 0.40504 | 0.13792 |
1.8 | 0.36965 | 0.1578 | 0.10999 |
1.88 | 0.06717 | 0.11088 | 0.07442 |
1.96 | 0.06298 | 0.11334 | 0.08376 |
2.04 | 0.0981 | 0.13901 | 0.10018 |
2.12 | 0.14007 | 0.15788 | 0.09869 |
2.2 | 0.08853 | 0.16382 | 0.08325 |
2.28 | -0.31646 | 0.18497 | 0.07892 |
2.36 | -0.18421 | 0.24123 | 0.09921 |
