Experiment: CLAS12 RG-K, 2022
Spokespersons: Daniel S. Carman
Measurement comment: Coordinate system:
(x,y,z), z along virtual photon direction, y normal to electron scattering plane, x=y x z
Q2 bin: [3.5:0.9] GeV^2
cos(θKc.m.) bin: [-1.0:-0.5]
Publication:
Quantity measured: P′x,
x projection of beam-recoil transferred polarization P′ in (x,y,z) system
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: K+ Σ0, polarization: polarized
Q2 : | 0.9 — 3.5 GeV2 | |
---|---|---|
W : | 1.6 — 2.4 GeV | |
Ebeam : | 6.535 GeV |

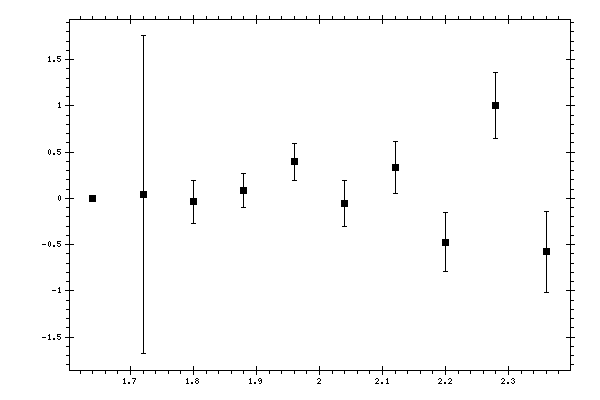

Observable quantity measured (Y axis): P′x,
Parameter (X axis): W, GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
W,
GeV |
P′x | Data errors | Systematic errors |
---|---|---|---|
1.64 | 0 | 0 | 0 |
1.72 | 0.04168 | 1.71492 | 0.18457 |
1.8 | -0.03791 | 0.23445 | 0.10368 |
1.88 | 0.08389 | 0.18453 | 0.0839 |
1.96 | 0.39558 | 0.20171 | 0.0932 |
2.04 | -0.05296 | 0.24962 | 0.10729 |
2.12 | 0.3322 | 0.2771 | 0.10312 |
2.2 | -0.47396 | 0.31719 | 0.1036 |
2.28 | 1 | 0.35774 | 0.10021 |
2.36 | -0.57882 | 0.43356 | 0.10513 |
