Measurement E195M126

You are not logged in.

Experiment: CLAS12 RG-K, 2022

Spokespersons: Daniel S. Carman

Measurement comment: Coordinate system:
    (x,y,z), z along virtual photon direction, y normal to electron scattering plane, x=y x z
Q2 bin: [3.5:0.9] GeV^2
cos(θKc.m.) bin: [-0.5:0.0]

Publication:

Quantity measured: P′x,
x projection of beam-recoil transferred polarization P′ in (x,y,z) system
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: K+ Σ0, polarization: polarized

Q2 : 0.9 — 3.5 GeV2
W : 1.6 — 2.4 GeV
Ebeam : 6.535 GeV

Observable quantity measured (Y axis): P′x,

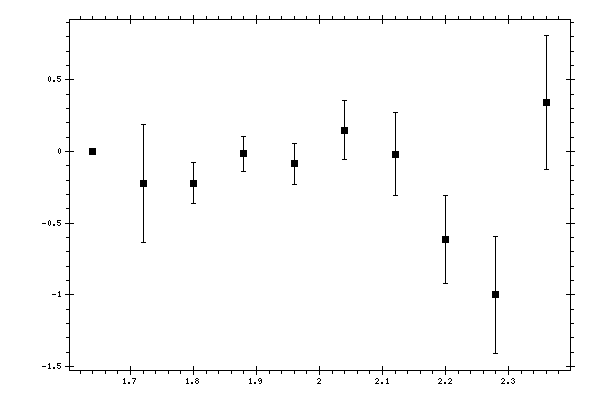

Plot measurement data

Parameter (X axis): W, GeV

Click here to get data in text file, delimited with tabs.

Measured data:

W,
GeV
P′x Data errors Systematic errors
1.64 0 0 0
1.72 -0.22237 0.40852 0.13792
1.8 -0.21939 0.14136 0.06558
1.88 -0.01604 0.12113 0.05117
1.96 -0.08571 0.14553 0.0624
2.04 0.14954 0.20378 0.08072
2.12 -0.01965 0.28976 0.10321
2.2 -0.61575 0.30687 0.07868
2.28 -1 0.40586 0.09316
2.36 0.34002 0.46762 0.07828
