Experiment: CLAS12 RG-K, 2022
Spokespersons: Daniel S. Carman
Measurement comment: Coordinate system:
(x,y,z), z along virtual photon direction, y normal to electron scattering plane, x=y x z
Q2 bin: [3.5:0.9] GeV^2
cos(θKc.m.) bin: [0.5:1.0]
Publication:
Quantity measured: P′x,
x projection of beam-recoil transferred polarization P′ in (x,y,z) system
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: K+ Σ0, polarization: polarized
Q2 : | 0.9 — 3.5 GeV2 | |
---|---|---|
W : | 1.6 — 2.4 GeV | |
Ebeam : | 6.535 GeV |

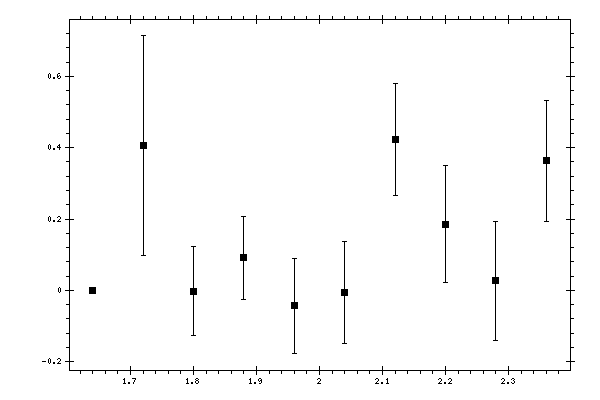

Observable quantity measured (Y axis): P′x,
Parameter (X axis): W, GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
W,
GeV |
P′x | Data errors | Systematic errors |
---|---|---|---|
1.64 | 0 | 0 | 0 |
1.72 | 0.40574 | 0.30812 | 0.12196 |
1.8 | -0.00223 | 0.12471 | 0.06735 |
1.88 | 0.09099 | 0.11601 | 0.05986 |
1.96 | -0.04322 | 0.133 | 0.07248 |
2.04 | -0.00625 | 0.14335 | 0.0744 |
2.12 | 0.42244 | 0.15683 | 0.07502 |
2.2 | 0.18479 | 0.1642 | 0.07894 |
2.28 | 0.02646 | 0.1663 | 0.07229 |
2.36 | 0.3631 | 0.17076 | 0.07005 |
