Measurement E195M145

You are not logged in.

Experiment: CLAS12 RG-K, 2022

Spokespersons: Daniel S. Carman

Measurement comment: Coordinate system:
    (x′,y′,z′), z′ along K+, y′ normal to hadronic plane, x′=y′ x z′
Q2 bin: [1:0.4] GeV^2
cos(θKc.m.) bin: [-1.0:-0.5]

Publication:

Quantity measured: P′x′,
x projection of beam-recoil transferred polarization P′ in (x',y',z') system
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: K+ Σ0, polarization: polarized

Q2 : 0.4 — 1 GeV2
W : 1.6 — 2.4 GeV
Ebeam : 7.546 GeV

Observable quantity measured (Y axis): P′x′,

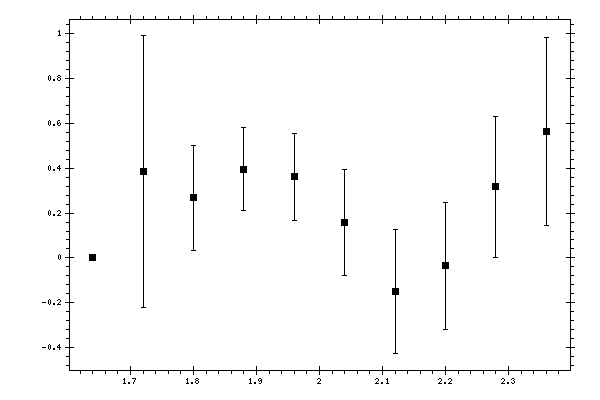

Plot measurement data

Parameter (X axis): W, GeV

Click here to get data in text file, delimited with tabs.

Measured data:

W,
GeV
P′x′ Data errors Systematic errors
1.64 0 0 0
1.72 0.38531 0.60608 0.13002
1.8 0.2681 0.23311 0.08325
1.88 0.39596 0.18627 0.07369
1.96 0.3615 0.19604 0.08038
2.04 0.15843 0.23798 0.09918
2.12 -0.14997 0.27542 0.1013
2.2 -0.03615 0.28161 0.08228
2.28 0.31733 0.31611 0.08419
2.36 0.56554 0.41877 0.10184
