Experiment: CLAS12 RG-K, 2022
Spokespersons: Daniel S. Carman
Measurement comment: Coordinate system:
(x,y,z), z along virtual photon direction, y normal to electron scattering plane, x=y x z
Q2 bin: [1:4.5] GeV^2
cos(θKc.m.) bin: [-0.5:0.0]
Publication:
Quantity measured: P′x,
x projection of beam-recoil transferred polarization P′ in (x,y,z) system
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: K+ Σ0, polarization: polarized
Q2 : | 1 — 4.5 GeV2 | |
---|---|---|
W : | 1.6 — 2.4 GeV | |
Ebeam : | 7.546 GeV |

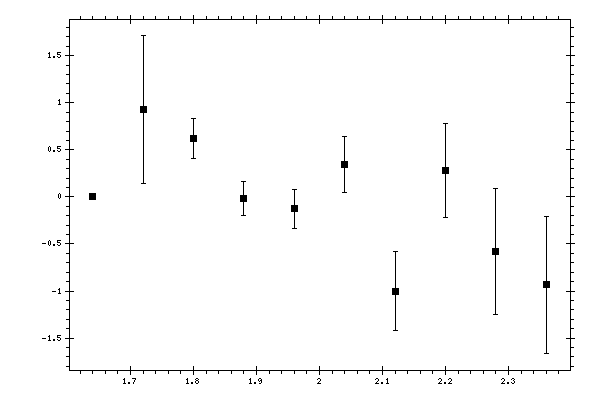

Observable quantity measured (Y axis): P′x,
Parameter (X axis): W, GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
W,
GeV |
P′x | Data errors | Systematic errors |
---|---|---|---|
1.64 | 0 | 0 | 0 |
1.72 | 0.92514 | 0.78589 | 0.15977 |
1.8 | 0.62192 | 0.21177 | 0.07177 |
1.88 | -0.01412 | 0.17923 | 0.05584 |
1.96 | -0.12791 | 0.20737 | 0.06114 |
2.04 | 0.34469 | 0.29776 | 0.08178 |
2.12 | -1 | 0.41954 | 0.10595 |
2.2 | 0.27917 | 0.49571 | 0.09189 |
2.28 | -0.57546 | 0.66932 | 0.09947 |
2.36 | -0.93227 | 0.72737 | 0.08156 |
