Measurement E195M165

You are not logged in.

Experiment: CLAS12 RG-K, 2022

Spokespersons: Daniel S. Carman

Measurement comment: Coordinate system:
    (x′,y′,z′), z′ along K+, y′ normal to hadronic plane, x′=y′ x z′
Q2 bin: [1:4.5] GeV^2
cos(θKc.m.) bin: [-1.0:-0.5]

Publication:

Quantity measured: P′z′,
z projection of beam-recoil transferred polarization P′ in (x',y',z') system
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: K+ Σ0, polarization: polarized

Q2 : 1 — 4.5 GeV2
W : 1.6 — 2.4 GeV
Ebeam : 7.546 GeV

Observable quantity measured (Y axis): P′z′,

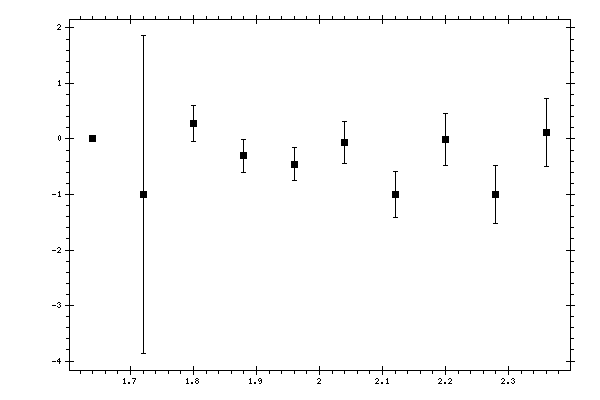

Plot measurement data

Parameter (X axis): W, GeV

Click here to get data in text file, delimited with tabs.

Measured data:

W,
GeV
P′z′ Data errors Systematic errors
1.64 0 0 0
1.72 -1 2.85691 0.17862
1.8 0.27897 0.32897 0.09929
1.88 -0.3045 0.29451 0.08881
1.96 -0.4523 0.30308 0.09441
2.04 -0.0617 0.38298 0.10455
2.12 -1 0.42138 0.10423
2.2 -0.0163 0.4666 0.09711
2.28 -1 0.51467 0.0905
2.36 0.11291 0.61761 0.09197
