Experiment: CLAS12 RG-K, 2022
Spokespersons: Daniel S. Carman
Measurement comment: Coordinate system:
(x,y,z), z along virtual photon direction, y normal to electron scattering plane, x=y x z
Q2 bin: [1:4.5] GeV^2
cos(θKc.m.) bin: [-1.0:-0.5]
Publication:
Quantity measured: P′z,
z projection of beam-recoil transferred polarization P′ in (x,y,z) system
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: K+ Σ0, polarization: polarized
Q2 : | 1 — 4.5 GeV2 | |
---|---|---|
W : | 1.6 — 2.4 GeV | |
Ebeam : | 7.546 GeV |

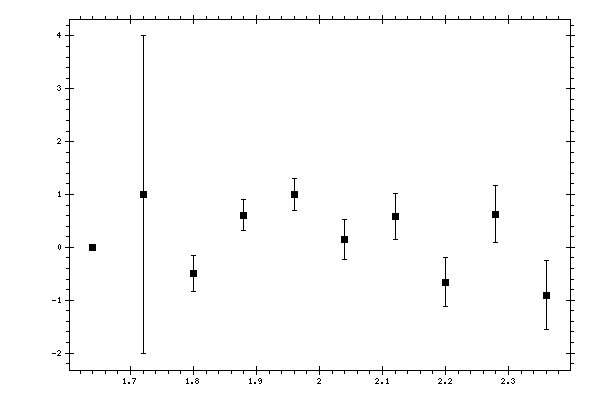

Observable quantity measured (Y axis): P′z,
Parameter (X axis): W, GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
W,
GeV |
P′z | Data errors | Systematic errors |
---|---|---|---|
1.64 | 0 | 0 | 0 |
1.72 | 1 | 3.00098 | 0.17862 |
1.8 | -0.49614 | 0.34209 | 0.09929 |
1.88 | 0.61151 | 0.29609 | 0.08881 |
1.96 | 1 | 0.30656 | 0.09441 |
2.04 | 0.14949 | 0.3821 | 0.10455 |
2.12 | 0.58673 | 0.43559 | 0.10423 |
2.2 | -0.66201 | 0.46228 | 0.09711 |
2.28 | 0.63023 | 0.53571 | 0.0905 |
2.36 | -0.90915 | 0.65137 | 0.09197 |
