Experiment: CLAS12 RG-K, 2022
Spokespersons: Daniel S. Carman
Measurement comment: Coordinate system:
(x,y,z), z along virtual photon direction, y normal to electron scattering plane, x=y x z
Q2 bin: [1:4.5] GeV^2
cos(θKc.m.) bin: [0.5:1.0]
Publication:
Quantity measured: P′z,
z projection of beam-recoil transferred polarization P′ in (x,y,z) system
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: K+ Σ0, polarization: polarized
Q2 : | 1 — 4.5 GeV2 | |
---|---|---|
W : | 1.6 — 2.4 GeV | |
Ebeam : | 7.546 GeV |

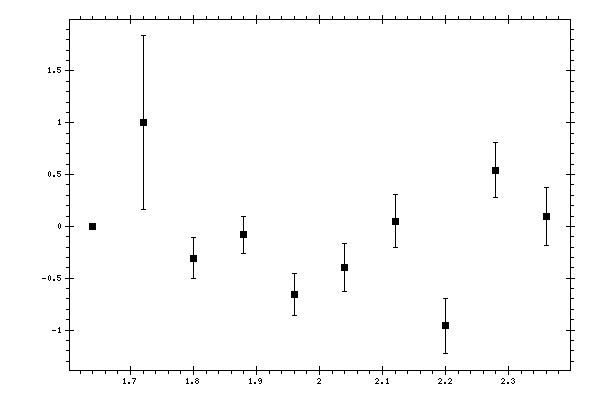

Observable quantity measured (Y axis): P′z,
Parameter (X axis): W, GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
W,
GeV |
P′z | Data errors | Systematic errors |
---|---|---|---|
1.64 | 0 | 0 | 0 |
1.72 | 1 | 0.83891 | 0.17197 |
1.8 | -0.30773 | 0.19958 | 0.08701 |
1.88 | -0.07923 | 0.17916 | 0.0659 |
1.96 | -0.65385 | 0.20396 | 0.0751 |
2.04 | -0.39659 | 0.22718 | 0.0832 |
2.12 | 0.05112 | 0.25833 | 0.09122 |
2.2 | -0.96099 | 0.262 | 0.08515 |
2.28 | 0.54294 | 0.26815 | 0.08382 |
2.36 | 0.09547 | 0.27541 | 0.08275 |
