Measurement E195M18

You are not logged in.

Experiment: CLAS12 RG-K, 2022

Spokespersons: Daniel S. Carman

Measurement comment: P′_x vs. W (integrated over Q², cos(θ_K^c.m.))
Coordinate system:
(x,y,z), z along virtual photon direction, y normal to electron scattering plane, x=y x z

Publication:

D. S. Carman et al. (CLAS Collaboration) Beam-recoil transferred polarization in K + Y electroproduction in the nucleon resonance region with CLAS12 // https://journals.aps.org/prc/abstract/10.1103/PhysRevC.105.065201

Quantity measured: P′_x,
x projection of beam-recoil transferred polarization P′ in (x,y,z) system
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: K⁺ Λ, polarization: polarized

Q² :	0.4 — 4.5 GeV²
W :	1.6 — 2.4 GeV
E_beam :	7.546 GeV

Observable quantity measured (Y axis): P′_x,

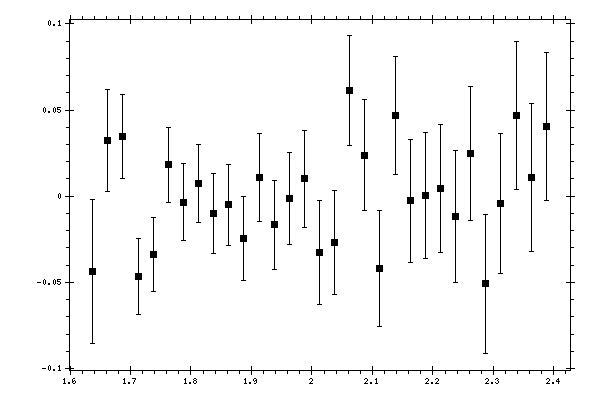

Plot measurement data

Parameter (X axis): W, GeV

Click here to get data in text file, delimited with tabs.

Measured data:

W, GeV	P′_x	Data errors	Systematic errors
1.6375	-0.04349	0.04186	0.02284
1.6625	0.03234	0.02948	0.01698
1.6875	0.03474	0.0243	0.01535
1.7125	-0.04663	0.02213	0.01447
1.7375	-0.03388	0.02151	0.0148
1.7625	0.01819	0.02163	0.01534
1.7875	-0.00338	0.02222	0.01496
1.8125	0.00751	0.02265	0.01575
1.8375	-0.01001	0.02331	0.01609
1.8625	-0.00504	0.02369	0.01642
1.8875	-0.02459	0.02433	0.01771
1.9125	0.01077	0.02547	0.01922
1.9375	-0.01665	0.02603	0.01957
1.9625	-0.00129	0.02693	0.01975
1.9875	0.01002	0.028	0.01992
2.0125	-0.03261	0.02988	0.02045
2.0375	-0.027	0.03019	0.02038
2.0625	0.06119	0.0318	0.02068
2.0875	0.02388	0.03243	0.0205
2.1125	-0.04173	0.03351	0.0204
2.1375	0.04669	0.03422	0.02046
2.1625	-0.00262	0.03555	0.01962
2.1875	0.00039	0.03629	0.01976
2.2125	0.00454	0.03722	0.01986
2.2375	-0.01195	0.03829	0.01994
2.2625	0.02489	0.03892	0.01946
2.2875	-0.05076	0.04021	0.01906
2.3125	-0.00443	0.04058	0.01967
2.3375	0.04675	0.04274	0.01968
2.3625	0.01068	0.04287	0.01898
2.3875	0.04024	0.04299	0.01896
