Measurement E195M39

You are not logged in.

Experiment: CLAS12 RG-K, 2022

Spokespersons: Daniel S. Carman

Measurement comment: P′_x' vs. W (integrated over Q², cos(θ_K^c.m.))
Coordinate system:
(x′,y′,z′), z′ along K⁺, y′ normal to hadronic plane, x′=y′ x z′

Publication:

D. S. Carman et al. (CLAS Collaboration) Beam-recoil transferred polarization in K + Y electroproduction in the nucleon resonance region with CLAS12 // https://journals.aps.org/prc/abstract/10.1103/PhysRevC.105.065201

Quantity measured: P′_x′,
x projection of beam-recoil transferred polarization P′ in (x',y',z') system
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: K⁺ Σ⁰, polarization: polarized

Q² :	0.4 — 4.5 GeV²
W :	1.6 — 2.4 GeV
E_beam :	7.546 GeV

Observable quantity measured (Y axis): P′_x′,

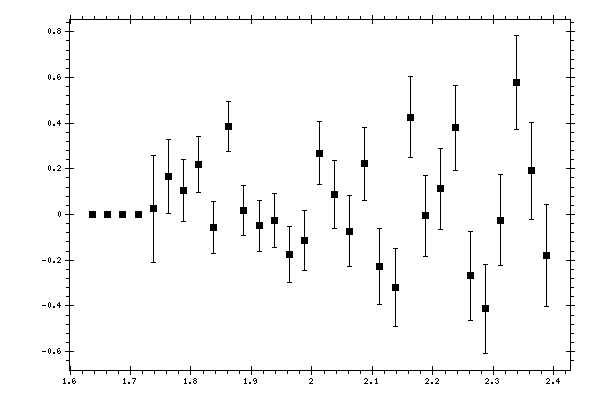

Plot measurement data

Parameter (X axis): W, GeV

Click here to get data in text file, delimited with tabs.

Measured data:

W, GeV	P′_x′	Data errors	Systematic errors
1.6375	0	0	0
1.6625	0	0	0
1.6875	0	0	0
1.7125	0	0	0
1.7375	0.02564	0.23374	0.12828
1.7625	0.16745	0.16089	0.0897
1.7875	0.10591	0.13647	0.0613
1.8125	0.22048	0.12308	0.05165
1.8375	-0.05593	0.11405	0.04376
1.8625	0.38481	0.10856	0.04051
1.8875	0.01638	0.10901	0.04082
1.9125	-0.04949	0.11048	0.04436
1.9375	-0.02553	0.11716	0.0487
1.9625	-0.17443	0.12362	0.05285
1.9875	-0.11391	0.13004	0.05497
2.0125	0.26849	0.13901	0.05673
2.0375	0.08793	0.14839	0.06383
2.0625	-0.07302	0.15465	0.06258
2.0875	0.22173	0.15906	0.06399
2.1125	-0.2256	0.16655	0.06339
2.1375	-0.31803	0.17088	0.06398
2.1625	0.42631	0.17656	0.06578
2.1875	-0.00453	0.17719	0.05783
2.2125	0.11345	0.17775	0.0587
2.2375	0.38046	0.18667	0.05991
2.2625	-0.26903	0.19352	0.06271
2.2875	-0.41191	0.1951	0.05993
2.3125	-0.02515	0.19939	0.0585
2.3375	0.57692	0.2055	0.05959
2.3625	0.19246	0.21246	0.06071
2.3875	-0.18023	0.224	0.05951
