Measurement E195M4

You are not logged in.

Experiment: CLAS12 RG-K, 2022

Spokespersons: Daniel S. Carman

Measurement comment: P′_x vs. cos(θ_K^c.m.) (integrated over Q², W)
Coordinate system:
(x,y,z), z along virtual photon direction, y normal to electron scattering plane, x=y x z

Publication:

D. S. Carman et al. (CLAS Collaboration) Beam-recoil transferred polarization in K + Y electroproduction in the nucleon resonance region with CLAS12 // https://journals.aps.org/prc/abstract/10.1103/PhysRevC.105.065201

Quantity measured: P′_x,
x projection of beam-recoil transferred polarization P′ in (x,y,z) system
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: K⁺ Λ, polarization: polarized

Q² :	0.3 — 3.5 GeV²
W :	1.6 — 2.4 GeV
E_beam :	6.535 GeV

Observable quantity measured (Y axis): P′_x,

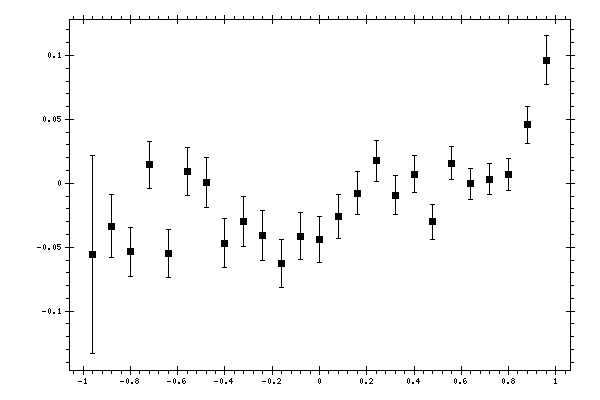

Plot measurement data

Parameter (X axis): cos(θ_K^c.m.),

Click here to get data in text file, delimited with tabs.

Measured data:

cos(θ_K^c.m.)	P′_x	Data errors	Systematic errors
-0.96	-0.05571	0.07711	0.02984
-0.88	-0.03357	0.02473	0.02478
-0.8	-0.05365	0.01921	0.02141
-0.72	0.01448	0.01831	0.01978
-0.64	-0.05499	0.01853	0.01985
-0.56	0.00902	0.01889	0.01985
-0.48	0.00073	0.01934	0.01999
-0.4	-0.04669	0.01942	0.02063
-0.32	-0.02963	0.01962	0.02099
-0.24	-0.04091	0.01936	0.02134
-0.16	-0.06278	0.019	0.02097
-0.08	-0.04141	0.01848	0.02097
0	-0.04412	0.01797	0.02044
0.08	-0.02584	0.0173	0.0192
0.16	-0.00765	0.01664	0.01857
0.24	0.01771	0.01604	0.01799
0.32	-0.00921	0.01529	0.01695
0.4	0.00718	0.01432	0.01593
0.48	-0.03017	0.01346	0.01517
0.56	0.01561	0.01284	0.01492
0.64	-0.00047	0.01235	0.01469
0.72	0.00311	0.01216	0.01487
0.8	0.00674	0.01266	0.01494
0.88	0.0457	0.0147	0.01534
0.96	0.0963	0.01904	0.01661
