Measurement E2M4

You are not logged in.

Experiment: CAA Run E1C, 2003

Spokespersons: M. Osipenko, G. Ricco

Experiment comment: The date were obtained from a comined analysis of five different beam energy settings: 1.5, 2.5, 4.0 and 4.4 GeV. The final structure functions are corrected for bin size effect and therefore correspond to an infinitely narrow bins.

Publications:

M. Osipenko, G. Ricco, M. Taiuti, M.Ripani, S. Simula, and CLAS Collaboration Kinematically complete measurement of proton structure function F2 in the resonance region and evaluation of its moments // Phys. Rev. D67, 092001 (2003)
M. Osipenko and CLAS Collaboration // CLAS-NOTE-2003-001

Quantity measured: F₂, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: inclusive, polarization: none

Q² :	0.375 GeV²
W :	1.0821 — 1.5896 GeV
x_b :	0.1855 — 0.5635

Observable quantity measured (Y axis): F₂, dimensionless

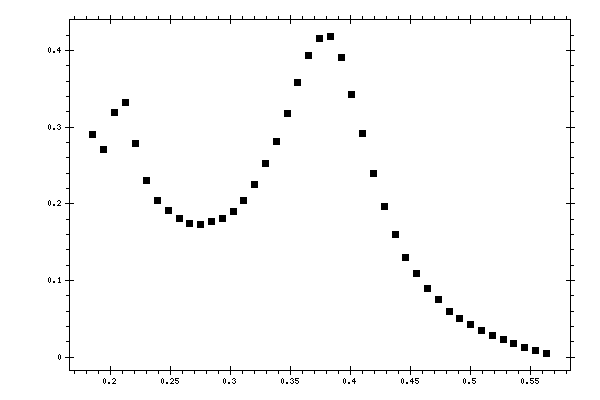

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x, dimensionless	F₂, dimensionless	Data errors, dimensionless	Systematic errors, dimensionless
0.1855	0.2899	0.0009834	0.02785
0.1945	0.271	0.0007085	0.02241
0.2035	0.3188	0.0006721	0.02525
0.2125	0.3318	0.0006955	0.02221
0.2215	0.2792	0.0006402	0.01754
0.2305	0.23	0.0005966	0.01354
0.2395	0.2044	0.0005975	0.01186
0.2485	0.191	0.0006122	0.0108
0.2575	0.1805	0.000621	0.009577
0.2665	0.1749	0.000639	0.008815
0.2755	0.1734	0.0006587	0.008547
0.2845	0.1765	0.0006934	0.01514
0.2935	0.1807	0.0007163	0.009987
0.3025	0.19	0.0007485	0.01046
0.3115	0.205	0.0007942	0.01116
0.3205	0.2259	0.0008555	0.01159
0.3295	0.2529	0.0009262	0.01298
0.3385	0.282	0.001011	0.01617
0.3475	0.318	0.001109	0.02083
0.3565	0.3577	0.00122	0.01941
0.3655	0.394	0.001324	0.01952
0.3745	0.4155	0.001394	0.01828
0.3835	0.4177	0.00143	0.01652
0.3925	0.3913	0.00139	0.01692
0.4015	0.3423	0.001299	0.01937
0.4105	0.2912	0.00119	0.01998
0.4195	0.2398	0.001065	0.01924
0.4285	0.1964	0.0009574	0.01897
0.4375	0.1606	0.000856	0.01603
0.4465	0.1296	0.0007614	0.01077
0.4555	0.109	0.0006918	0.008836
0.4645	0.08955	0.0006179	0.009146
0.4735	0.07492	0.0005521	0.007587
0.4825	0.06016	0.0004831	0.003568
0.4915	0.05082	0.000435	0.004029
0.5005	0.04219	0.0003778	0.004042
0.5095	0.03438	0.0003319	0.00266
0.5185	0.0287	0.0002839	0.002324
0.5275	0.02265	0.0002371	0.001945
0.5365	0.01805	0.0001943	0.001821
0.5455	0.01302	0.0001476	0.0003496
0.5545	0.008736	0.0001051	0.0002319
0.5635	0.00543	6.415e-05	0.0001384
