Measurement E21M3

You are not logged in.

Experiment: g1c CLAS experiment, 2006

Spokespersons: K. Hicks

Measurement comment: Statistical and systematic errors are added in quadrature.

Publication:

Quantity measured: dσ/dcos(θK*), nb
Differential cross section, where cos(θK*) is cosine of the K* meson azimuthal angle in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: K*0 Σ+, polarization: none

W : 2.19 — 2.254 GeV

Observable quantity measured (Y axis): dσ/dcos(θK*), nb

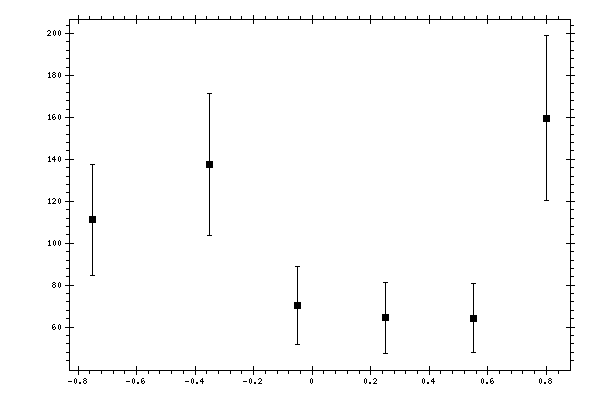

Plot measurement data

Parameter (X axis): cos(θK*), dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

cos(θK*),
dimensionless
dσ/dcos(θK*),
nb
Data errors,
nb
-0.75 111.2 26.4
-0.35 137.6 33.9
-0.05 70.4 18.7
0.25 64.5 16.9
0.55 64.3 16.3
0.8 159.6 39.3
