Measurement E21M4

You are not logged in.

Experiment: g1c CLAS experiment, 2006

Spokespersons: K. Hicks

Measurement comment: Statistical and systematic errors are added in quadrature.

Publication:

Quantity measured: dσ/dcos(θK*), nb
Differential cross section, where cos(θK*) is cosine of the K* meson azimuthal angle in CMS.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: K*0 Σ+, polarization: none

W : 2.254 — 2.305 GeV

Observable quantity measured (Y axis): dσ/dcos(θK*), nb

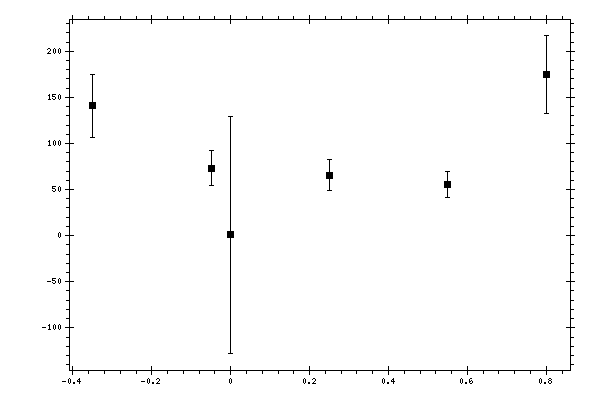

Plot measurement data

Parameter (X axis): cos(θK*), dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

cos(θK*),
dimensionless
dσ/dcos(θK*),
nb
Data errors,
nb
0 0.75 128.2
-0.35 140.9 34.4
-0.05 73.3 19.2
0.25 65.3 16.8
0.55 55.2 14.2
0.8 174.5 42.2
