Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: σ, mcb
Cross section.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.4 — 2 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): σ, mcb
Parameter (X axis): W, GeV |
Click here to get data in text file, delimited with tabs.

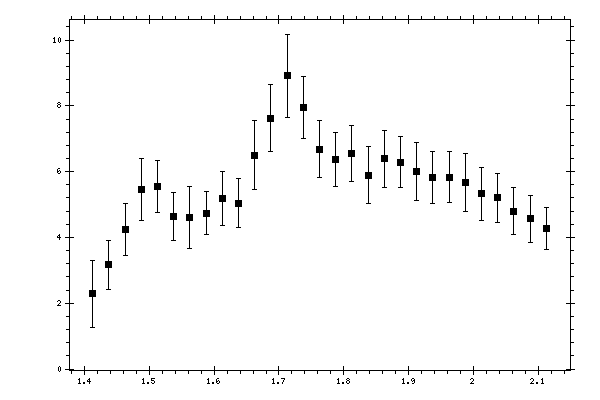

Measured data:
|
W,
GeV |
σ,
mcb |
Total error,
mcb |
|---|---|---|
| 1.4125 | 2.2878 | 1.0128 |
| 1.4375 | 3.1637 | 0.7448 |
| 1.4625 | 4.24 | 0.7905 |
| 1.4875 | 5.4652 | 0.9474 |
| 1.5125 | 5.5574 | 0.7896 |
| 1.5375 | 4.6407 | 0.7387 |
| 1.5625 | 4.6037 | 0.933 |
| 1.5875 | 4.7405 | 0.6534 |
| 1.6125 | 5.1741 | 0.825 |
| 1.6375 | 5.039 | 0.7404 |
| 1.6625 | 6.5049 | 1.0415 |
| 1.6875 | 7.6253 | 1.0189 |
| 1.7125 | 8.9137 | 1.2536 |
| 1.7375 | 7.9451 | 0.9386 |
| 1.7625 | 6.6852 | 0.8572 |
| 1.7875 | 6.3664 | 0.8168 |
| 1.8125 | 6.5546 | 0.8632 |
| 1.8375 | 5.8932 | 0.8743 |
| 1.8625 | 6.3857 | 0.8655 |
| 1.8875 | 6.2872 | 0.7707 |
| 1.9125 | 6.0082 | 0.8748 |
| 1.9375 | 5.8285 | 0.792 |
| 1.9625 | 5.8352 | 0.7818 |
| 1.9875 | 5.6728 | 0.8764 |
| 2.0125 | 5.3271 | 0.802 |
| 2.0375 | 5.2037 | 0.7525 |
| 2.0625 | 4.7957 | 0.7162 |
| 2.0875 | 4.5711 | 0.7191 |
| 2.1125 | 4.2701 | 0.6476 |
