Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.6 — 1.625 GeV | |
| Ebeam : | 5.754 GeV |
|

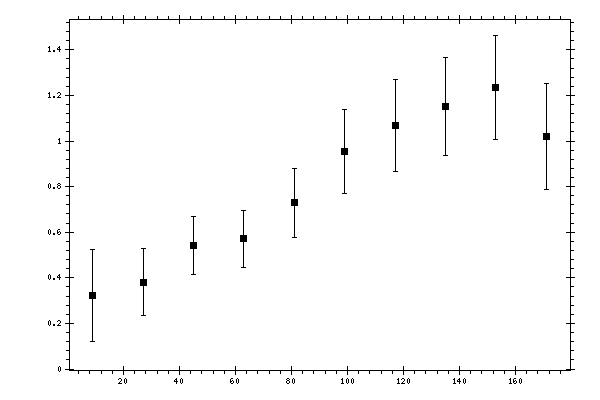

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.324 | 0.0512 | 0.1436 | 0.2014 |
| 27 | 0.3814 | 0.0456 | 0.103 | 0.1475 |
| 45 | 0.5422 | 0.0514 | 0.1171 | 0.1279 |
| 63 | 0.5708 | 0.0597 | 0.1115 | 0.1265 |
| 81 | 0.729 | 0.0712 | 0.1332 | 0.151 |
| 99 | 0.9557 | 0.0769 | 0.1678 | 0.1846 |
| 117 | 1.0689 | 0.0784 | 0.1869 | 0.2026 |
| 135 | 1.1514 | 0.0796 | 0.1989 | 0.2142 |
| 153 | 1.2343 | 0.0926 | 0.2099 | 0.2294 |
| 171 | 1.0188 | 0.1151 | 0.2023 | 0.2327 |
