Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.625 — 1.65 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

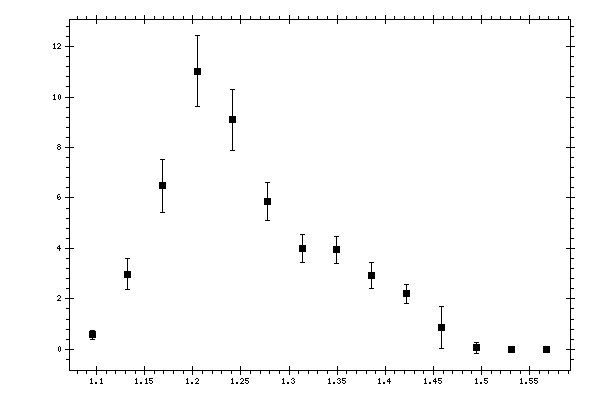

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.09597 | 0.5792 | 0.0702 | 0.1655 | 0.1798 |
| 1.132227 | 2.9708 | 0.3184 | 0.5259 | 0.6148 |
| 1.168483 | 6.4888 | 0.5681 | 0.8789 | 1.0466 |
| 1.204739 | 11.0251 | 0.712 | 1.2055 | 1.4001 |
| 1.240995 | 9.0969 | 0.7453 | 0.9367 | 1.197 |
| 1.277252 | 5.8569 | 0.4285 | 0.6161 | 0.7505 |
| 1.313508 | 3.9806 | 0.3434 | 0.4358 | 0.5549 |
| 1.349764 | 3.9396 | 0.3365 | 0.4367 | 0.5513 |
| 1.38602 | 2.9126 | 0.371 | 0.3514 | 0.511 |
| 1.422277 | 2.1925 | 0.2615 | 0.2916 | 0.3917 |
| 1.458533 | 0.8537 | 0.1243 | 0.1659 | 0.8409 |
| 1.494789 | 0.0591 | 0.0091 | 0.0298 | 0.2112 |
| 1.531046 | 0 | 0.0025 | 0 | 0 |
| 1.567302 | 0 | 0 | 0 | 0 |
