Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
Measurement comment: The angle ψ is the angle between the plane defined by the three-momenta of the hadron (in parentheses) and the target proton, and the plane defined by the three-momenta of the other two final-state hadrons
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcb/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.625 — 1.65 GeV | |
| Ebeam : | 5.754 GeV |
|

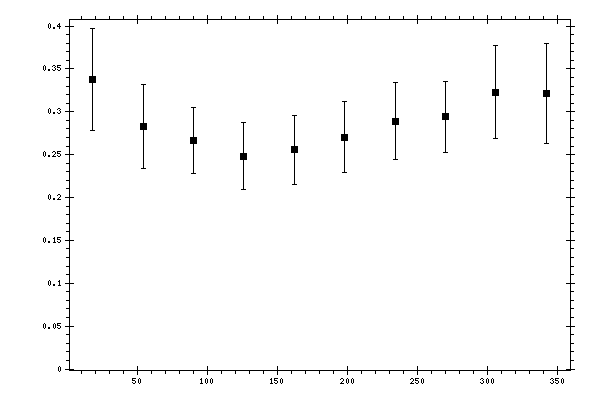

Observable quantity measured (Y axis): dσ/dψ(p), mcb/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 18 | 0.338 | 0.0321 | 0.0504 | 0.0597 |
| 54 | 0.2827 | 0.027 | 0.0346 | 0.0492 |
| 90 | 0.266 | 0.0237 | 0.0303 | 0.0385 |
| 126 | 0.2484 | 0.0202 | 0.0278 | 0.0388 |
| 162 | 0.2558 | 0.019 | 0.0277 | 0.0401 |
| 198 | 0.2703 | 0.0221 | 0.0292 | 0.0412 |
| 234 | 0.2888 | 0.027 | 0.0315 | 0.0449 |
| 270 | 0.294 | 0.0249 | 0.0334 | 0.0417 |
| 306 | 0.3231 | 0.0296 | 0.038 | 0.0542 |
| 342 | 0.3215 | 0.0314 | 0.0496 | 0.0587 |
