Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.625 — 1.65 GeV | |
| Ebeam : | 5.754 GeV |
|

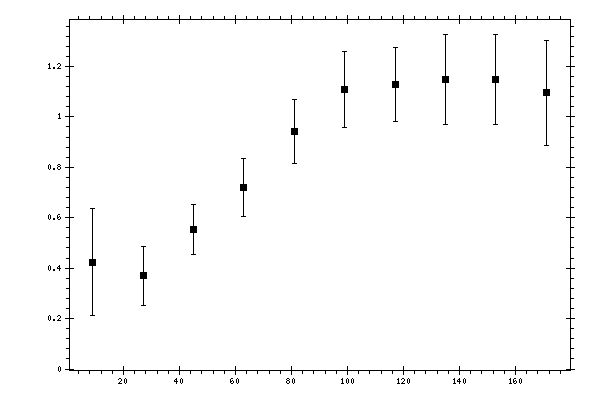

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.4232 | 0.0554 | 0.1439 | 0.2118 |
| 27 | 0.3699 | 0.0369 | 0.0822 | 0.1168 |
| 45 | 0.5536 | 0.0524 | 0.0848 | 0.0997 |
| 63 | 0.7196 | 0.0703 | 0.0901 | 0.1143 |
| 81 | 0.942 | 0.0639 | 0.1081 | 0.1256 |
| 99 | 1.1076 | 0.0898 | 0.1213 | 0.151 |
| 117 | 1.1281 | 0.074 | 0.127 | 0.147 |
| 135 | 1.1491 | 0.0876 | 0.1258 | 0.1792 |
| 153 | 1.1475 | 0.0798 | 0.1236 | 0.1792 |
| 171 | 1.0955 | 0.1256 | 0.1474 | 0.2072 |
