Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.65 — 1.675 GeV | |
| Ebeam : | 5.754 GeV |
|

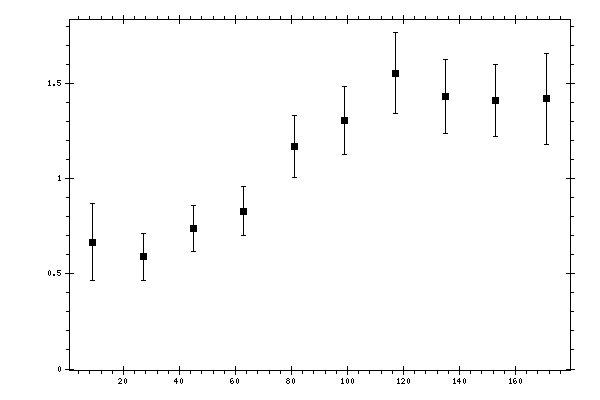

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.6667 | 0.0982 | 0.1768 | 0.2022 |
| 27 | 0.5896 | 0.0612 | 0.1082 | 0.1243 |
| 45 | 0.7369 | 0.0525 | 0.1094 | 0.1214 |
| 63 | 0.8275 | 0.0662 | 0.1103 | 0.1286 |
| 81 | 1.1688 | 0.074 | 0.1454 | 0.1631 |
| 99 | 1.3064 | 0.0788 | 0.1612 | 0.1794 |
| 117 | 1.5543 | 0.0943 | 0.1919 | 0.2138 |
| 135 | 1.4313 | 0.0886 | 0.1749 | 0.1961 |
| 153 | 1.4116 | 0.0924 | 0.1665 | 0.1905 |
| 171 | 1.4189 | 0.1372 | 0.1951 | 0.2385 |
