Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.675 — 1.7 GeV | |
| Ebeam : | 5.754 GeV |
|

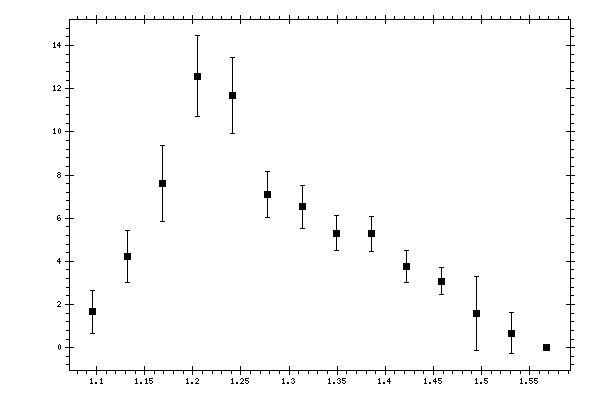

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.09597 | 1.6546 | 0.2061 | 0.3946 | 0.9883 |
| 1.132227 | 4.2175 | 0.7546 | 0.8557 | 1.2094 |
| 1.168483 | 7.5972 | 0.4702 | 1.2544 | 1.771 |
| 1.204739 | 12.5789 | 0.7201 | 1.7261 | 1.8702 |
| 1.240995 | 11.6891 | 0.8463 | 1.543 | 1.7598 |
| 1.277252 | 7.1021 | 0.496 | 0.9361 | 1.0594 |
| 1.313508 | 6.5221 | 0.5006 | 0.8433 | 0.9807 |
| 1.349764 | 5.2948 | 0.4119 | 0.7039 | 0.8155 |
| 1.38602 | 5.2675 | 0.3854 | 0.6985 | 0.7977 |
| 1.422277 | 3.7484 | 0.3274 | 0.5164 | 0.731 |
| 1.458533 | 3.0751 | 0.3218 | 0.4418 | 0.6248 |
| 1.494789 | 1.5906 | 0.1914 | 0.2892 | 1.7159 |
| 1.531046 | 0.6778 | 0.1152 | 0.1784 | 0.9324 |
| 1.567302 | 0.0053 | 0.0039 | 0.0032 | 0.0051 |
