Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.675 — 1.7 GeV | |
| Ebeam : | 5.754 GeV |
|

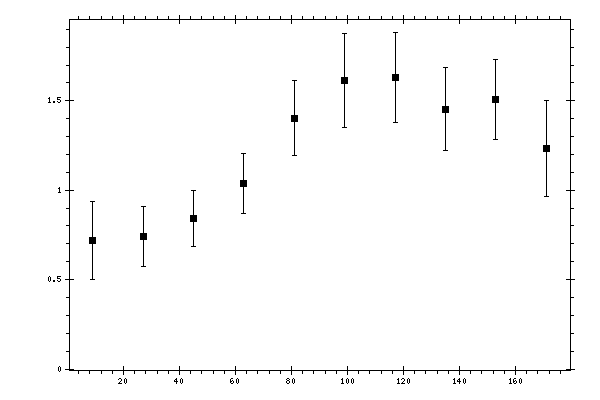

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.7192 | 0.0745 | 0.2056 | 0.2187 |
| 27 | 0.7425 | 0.0974 | 0.1378 | 0.1687 |
| 45 | 0.8442 | 0.0803 | 0.135 | 0.1571 |
| 63 | 1.0362 | 0.0737 | 0.1511 | 0.1681 |
| 81 | 1.4037 | 0.0829 | 0.1949 | 0.2118 |
| 99 | 1.6127 | 0.125 | 0.2307 | 0.2624 |
| 117 | 1.6303 | 0.0958 | 0.2342 | 0.253 |
| 135 | 1.4545 | 0.0857 | 0.2137 | 0.2302 |
| 153 | 1.5061 | 0.0942 | 0.2033 | 0.2241 |
| 171 | 1.2331 | 0.1689 | 0.2059 | 0.2664 |
