Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.775 — 1.8 GeV | |
| Ebeam : | 5.754 GeV |
|

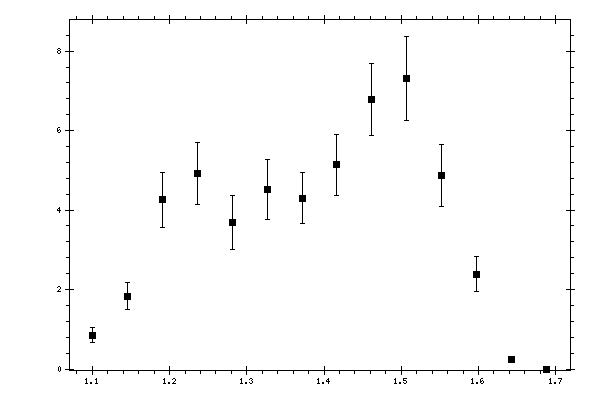

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.100435 | 0.8537 | 0.1317 | 0.1371 | 0.1901 |
| 1.145619 | 1.8342 | 0.1709 | 0.2958 | 0.3416 |
| 1.190804 | 4.2569 | 0.3524 | 0.601 | 0.6967 |
| 1.235989 | 4.9152 | 0.2958 | 0.7154 | 0.7741 |
| 1.281174 | 3.6821 | 0.298 | 0.6143 | 0.6827 |
| 1.326359 | 4.5094 | 0.3828 | 0.6531 | 0.757 |
| 1.371544 | 4.3013 | 0.2407 | 0.599 | 0.6456 |
| 1.416728 | 5.1346 | 0.4198 | 0.6455 | 0.77 |
| 1.461913 | 6.7914 | 0.4022 | 0.8082 | 0.9028 |
| 1.507098 | 7.3085 | 0.5811 | 0.883 | 1.057 |
| 1.552283 | 4.8646 | 0.4759 | 0.6243 | 0.785 |
| 1.597468 | 2.3865 | 0.2344 | 0.3706 | 0.4385 |
| 1.642653 | 0.2407 | 0.0476 | 0.0559 | 0.0734 |
| 1.687837 | 0 | 0 | 0 | 0 |
