Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.775 — 1.8 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

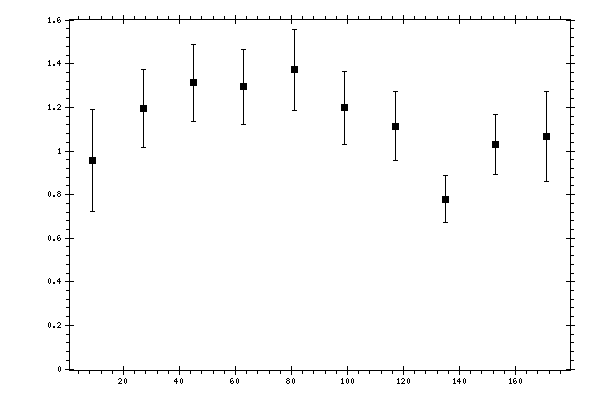

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.955 | 0.1204 | 0.2011 | 0.2344 |
| 27 | 1.1943 | 0.1036 | 0.1469 | 0.1798 |
| 45 | 1.3129 | 0.0848 | 0.1557 | 0.1773 |
| 63 | 1.2944 | 0.0742 | 0.1564 | 0.1731 |
| 81 | 1.3721 | 0.0886 | 0.1618 | 0.1845 |
| 99 | 1.1995 | 0.0849 | 0.1443 | 0.1674 |
| 117 | 1.1146 | 0.0913 | 0.129 | 0.1581 |
| 135 | 0.7788 | 0.0597 | 0.091 | 0.1088 |
| 153 | 1.0298 | 0.0798 | 0.1098 | 0.1357 |
| 171 | 1.0668 | 0.1395 | 0.1541 | 0.2079 |
