Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.8 — 1.825 GeV | |
| Ebeam : | 5.754 GeV |
|

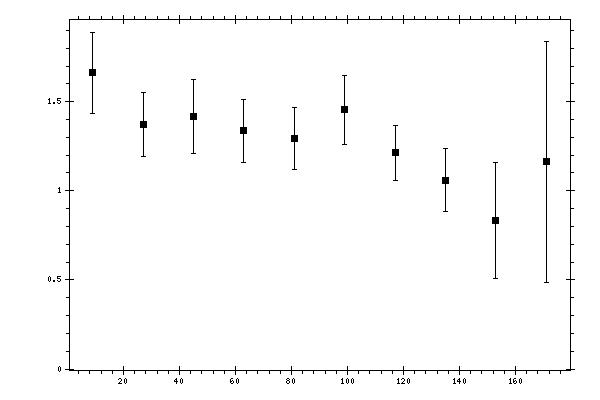

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.6612 | 0.1431 | 0.1759 | 0.2268 |
| 27 | 1.371 | 0.1035 | 0.146 | 0.179 |
| 45 | 1.4177 | 0.1306 | 0.1611 | 0.2074 |
| 63 | 1.3361 | 0.0916 | 0.1524 | 0.1778 |
| 81 | 1.2921 | 0.0739 | 0.1556 | 0.1723 |
| 99 | 1.4536 | 0.1151 | 0.157 | 0.1946 |
| 117 | 1.2126 | 0.071 | 0.1373 | 0.1546 |
| 135 | 1.0594 | 0.1059 | 0.141 | 0.1763 |
| 153 | 0.8336 | 0.1023 | 0.3067 | 0.3233 |
| 171 | 1.1629 | 0.0026 | 0.6774 | 0.6774 |
