Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.8 — 1.825 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

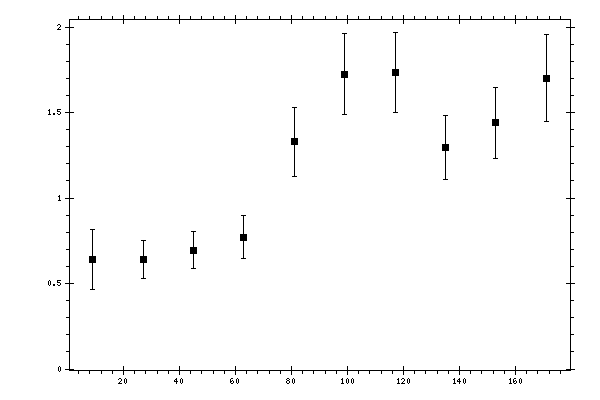

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.6421 | 0.0703 | 0.1611 | 0.1758 |
| 27 | 0.6405 | 0.049 | 0.0988 | 0.1103 |
| 45 | 0.6946 | 0.0545 | 0.0942 | 0.1088 |
| 63 | 0.7718 | 0.0589 | 0.1104 | 0.1252 |
| 81 | 1.3281 | 0.0855 | 0.1811 | 0.2003 |
| 99 | 1.724 | 0.1197 | 0.2028 | 0.2355 |
| 117 | 1.734 | 0.1143 | 0.2022 | 0.2323 |
| 135 | 1.2951 | 0.0826 | 0.1684 | 0.1876 |
| 153 | 1.4397 | 0.1115 | 0.1739 | 0.2065 |
| 171 | 1.7004 | 0.1535 | 0.2042 | 0.2555 |
