Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.825 — 1.85 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

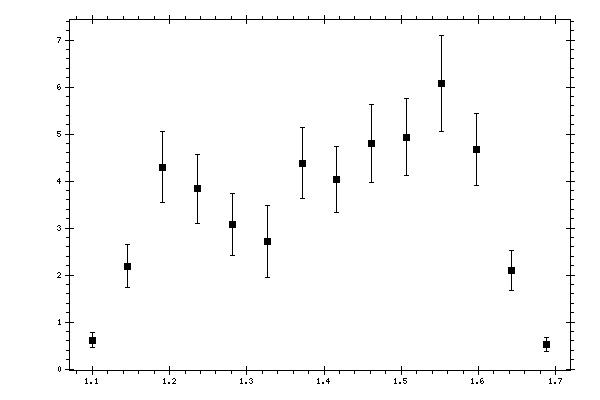

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.100435 | 0.6161 | 0.0991 | 0.1346 | 0.1671 |
| 1.145619 | 2.1896 | 0.2764 | 0.3697 | 0.4616 |
| 1.190804 | 4.2987 | 0.3233 | 0.6728 | 0.7465 |
| 1.235989 | 3.8308 | 0.2926 | 0.6718 | 0.7328 |
| 1.281174 | 3.069 | 0.2737 | 0.5981 | 0.6578 |
| 1.326359 | 2.7143 | 0.5362 | 0.5468 | 0.7658 |
| 1.371544 | 4.3774 | 0.3723 | 0.6529 | 0.7516 |
| 1.416728 | 4.0419 | 0.3324 | 0.6201 | 0.7036 |
| 1.461913 | 4.7988 | 0.4732 | 0.6761 | 0.8253 |
| 1.507098 | 4.9344 | 0.3982 | 0.708 | 0.8123 |
| 1.552283 | 6.0774 | 0.5757 | 0.8351 | 1.0143 |
| 1.597468 | 4.6632 | 0.3961 | 0.6535 | 0.7641 |
| 1.642653 | 2.0932 | 0.1801 | 0.3837 | 0.4239 |
| 1.687837 | 0.5211 | 0.075 | 0.1231 | 0.1442 |
