Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
Measurement comment: The angle ψ is the angle between the plane defined by the three-momenta of the hadron (in parentheses) and the target proton, and the plane defined by the three-momenta of the other two final-state hadrons
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcb/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.825 — 1.85 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcb/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

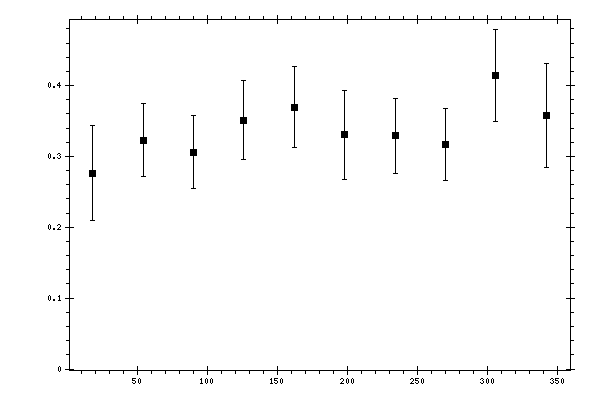

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 18 | 0.2765 | 0.0311 | 0.0591 | 0.0667 |
| 54 | 0.323 | 0.0209 | 0.0477 | 0.052 |
| 90 | 0.3061 | 0.0257 | 0.044 | 0.051 |
| 126 | 0.3514 | 0.0267 | 0.0488 | 0.0556 |
| 162 | 0.3695 | 0.0302 | 0.0487 | 0.0573 |
| 198 | 0.3309 | 0.0442 | 0.0446 | 0.0628 |
| 234 | 0.3293 | 0.0237 | 0.0475 | 0.053 |
| 270 | 0.3169 | 0.0221 | 0.0458 | 0.0509 |
| 306 | 0.4143 | 0.0328 | 0.056 | 0.0648 |
| 342 | 0.358 | 0.0312 | 0.0662 | 0.0732 |
