Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.85 — 1.875 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

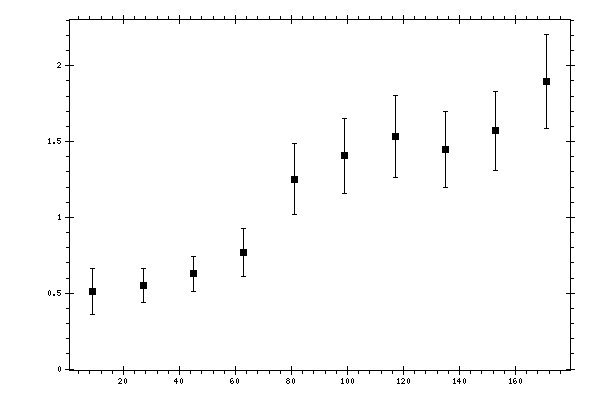

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.5121 | 0.0536 | 0.1433 | 0.153 |
| 27 | 0.5494 | 0.0433 | 0.1016 | 0.1105 |
| 45 | 0.6289 | 0.0449 | 0.1057 | 0.1149 |
| 63 | 0.7699 | 0.0618 | 0.1455 | 0.1581 |
| 81 | 1.2521 | 0.0915 | 0.2156 | 0.2342 |
| 99 | 1.4067 | 0.1125 | 0.2192 | 0.2464 |
| 117 | 1.5325 | 0.1407 | 0.2334 | 0.2726 |
| 135 | 1.4459 | 0.0946 | 0.2308 | 0.2494 |
| 153 | 1.572 | 0.108 | 0.2375 | 0.2609 |
| 171 | 1.8985 | 0.1439 | 0.275 | 0.3104 |
