Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.9 — 1.925 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

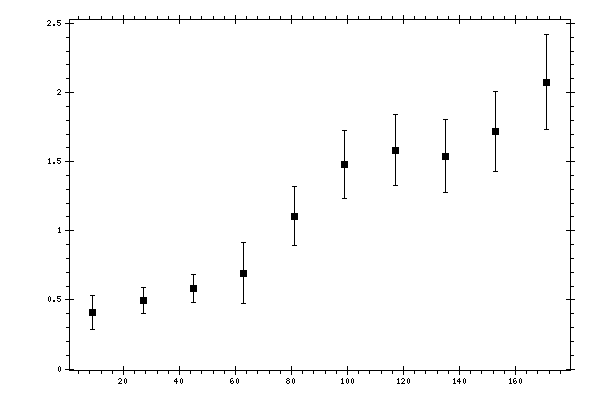

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.4106 | 0.0441 | 0.1168 | 0.1249 |
| 27 | 0.495 | 0.0416 | 0.0855 | 0.095 |
| 45 | 0.5803 | 0.0397 | 0.0941 | 0.1021 |
| 63 | 0.6944 | 0.1673 | 0.1437 | 0.2206 |
| 81 | 1.1048 | 0.0718 | 0.2004 | 0.2128 |
| 99 | 1.4786 | 0.1137 | 0.2173 | 0.2453 |
| 117 | 1.5836 | 0.1171 | 0.2313 | 0.2592 |
| 135 | 1.541 | 0.1083 | 0.2432 | 0.2662 |
| 153 | 1.7169 | 0.1502 | 0.2458 | 0.288 |
| 171 | 2.0747 | 0.1975 | 0.2819 | 0.3442 |
