Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.95 — 1.975 GeV | |
| Ebeam : | 5.754 GeV |
|

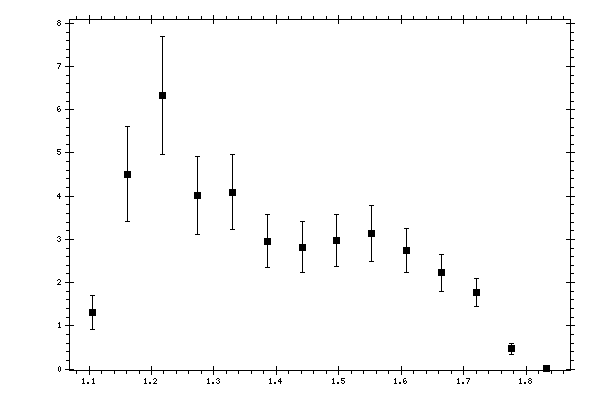

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.105792 | 1.3089 | 0.1362 | 0.3741 | 0.3982 |
| 1.161691 | 4.5075 | 0.2753 | 1.0592 | 1.0944 |
| 1.21759 | 6.33 | 0.4762 | 1.2777 | 1.3636 |
| 1.273489 | 4.0129 | 0.3473 | 0.8293 | 0.8991 |
| 1.329388 | 4.0906 | 0.391 | 0.7718 | 0.8652 |
| 1.385287 | 2.961 | 0.2185 | 0.5829 | 0.6225 |
| 1.441186 | 2.8206 | 0.2295 | 0.5366 | 0.5836 |
| 1.497086 | 2.975 | 0.2415 | 0.5414 | 0.5928 |
| 1.552985 | 3.132 | 0.353 | 0.5443 | 0.6488 |
| 1.608884 | 2.7518 | 0.2301 | 0.4524 | 0.5075 |
| 1.664783 | 2.2239 | 0.2195 | 0.358 | 0.4199 |
| 1.720682 | 1.7669 | 0.1614 | 0.2894 | 0.3314 |
| 1.776581 | 0.4697 | 0.0688 | 0.1064 | 0.1267 |
| 1.83248 | 0.0137 | 0.0014 | 0.0086 | 0.0087 |
