Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.95 — 1.975 GeV | |
| Ebeam : | 5.754 GeV |
|

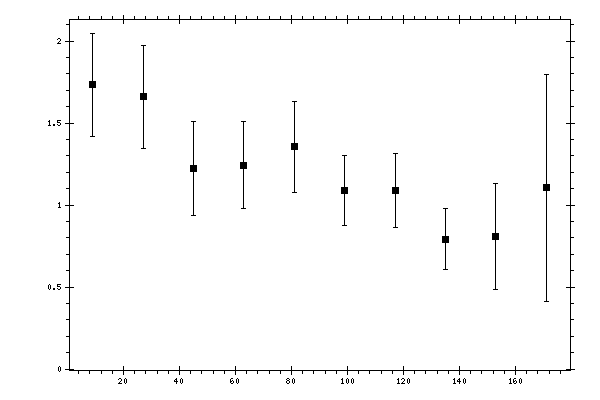

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.7329 | 0.1392 | 0.2818 | 0.3143 |
| 27 | 1.6613 | 0.1473 | 0.2771 | 0.3139 |
| 45 | 1.2212 | 0.1108 | 0.2641 | 0.2864 |
| 63 | 1.2435 | 0.1005 | 0.246 | 0.2657 |
| 81 | 1.3562 | 0.1185 | 0.2508 | 0.2774 |
| 99 | 1.0899 | 0.0667 | 0.2041 | 0.2148 |
| 117 | 1.0892 | 0.1004 | 0.1991 | 0.223 |
| 135 | 0.792 | 0.0612 | 0.1739 | 0.1843 |
| 153 | 0.811 | 0.1 | 0.3071 | 0.323 |
| 171 | 1.1047 | 0.0029 | 0.6937 | 0.6937 |
