Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.95 — 1.975 GeV | |
| Ebeam : | 5.754 GeV |
|

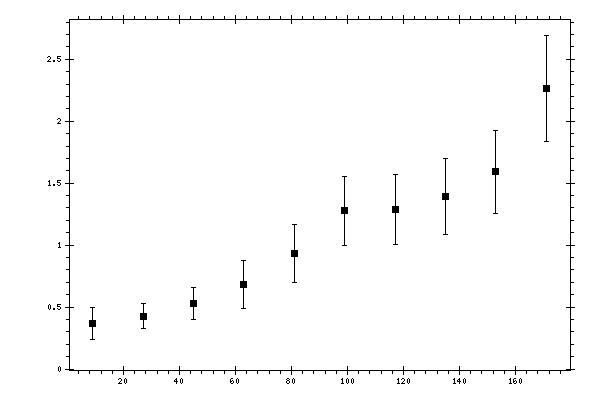

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.366 | 0.0382 | 0.1235 | 0.1293 |
| 27 | 0.4266 | 0.0374 | 0.0942 | 0.1014 |
| 45 | 0.5303 | 0.0437 | 0.1202 | 0.1279 |
| 63 | 0.6798 | 0.0564 | 0.1867 | 0.195 |
| 81 | 0.9344 | 0.0765 | 0.2231 | 0.2358 |
| 99 | 1.2762 | 0.0913 | 0.2638 | 0.2791 |
| 117 | 1.2902 | 0.0794 | 0.2704 | 0.2818 |
| 135 | 1.3897 | 0.0897 | 0.294 | 0.3074 |
| 153 | 1.5911 | 0.1034 | 0.3155 | 0.332 |
| 171 | 2.2648 | 0.1654 | 0.3963 | 0.4295 |
