Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.975 — 2 GeV | |
| Ebeam : | 5.754 GeV |
|

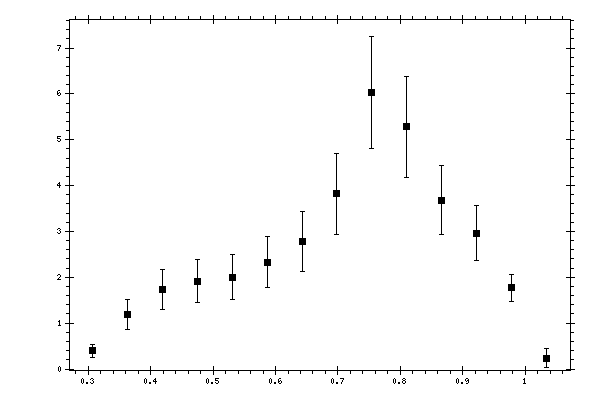

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 0.30709 | 0.3947 | 0.0552 | 0.1296 | 0.1409 |
| 0.362989 | 1.1876 | 0.1345 | 0.3048 | 0.3331 |
| 0.418888 | 1.7387 | 0.1384 | 0.4196 | 0.4418 |
| 0.474787 | 1.9136 | 0.1388 | 0.4441 | 0.4653 |
| 0.530686 | 2.0064 | 0.1308 | 0.4726 | 0.4903 |
| 0.586586 | 2.332 | 0.1861 | 0.5297 | 0.5615 |
| 0.642485 | 2.7725 | 0.208 | 0.6208 | 0.6547 |
| 0.698384 | 3.8168 | 0.2888 | 0.83 | 0.8788 |
| 0.754283 | 6.0244 | 0.4476 | 1.1415 | 1.2261 |
| 0.810182 | 5.2849 | 0.3959 | 1.0266 | 1.1003 |
| 0.866081 | 3.6849 | 0.2985 | 0.7012 | 0.7621 |
| 0.92198 | 2.9642 | 0.3188 | 0.5061 | 0.5981 |
| 0.977879 | 1.7696 | 0.1737 | 0.2375 | 0.2943 |
| 1.033778 | 0.236 | 0.1978 | 0.0382 | 0.2015 |
