Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 2 — 2.025 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

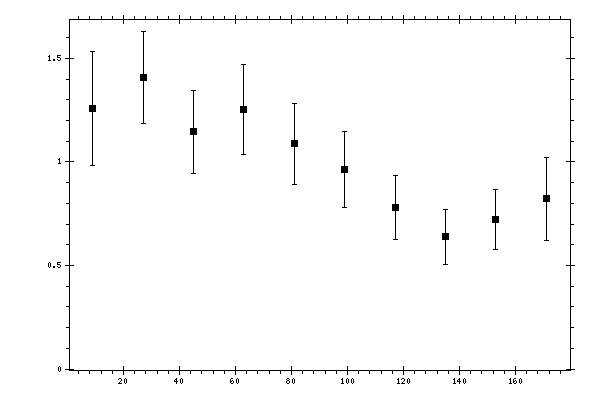

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.258 | 0.1654 | 0.218 | 0.2736 |
| 27 | 1.4079 | 0.0991 | 0.1984 | 0.2218 |
| 45 | 1.1461 | 0.0976 | 0.1747 | 0.2001 |
| 63 | 1.2532 | 0.1022 | 0.1898 | 0.2155 |
| 81 | 1.0881 | 0.0835 | 0.1757 | 0.1945 |
| 99 | 0.9629 | 0.0778 | 0.1659 | 0.1833 |
| 117 | 0.7804 | 0.0579 | 0.1441 | 0.1553 |
| 135 | 0.6392 | 0.0442 | 0.126 | 0.1335 |
| 153 | 0.7219 | 0.0819 | 0.1174 | 0.1432 |
| 171 | 0.8229 | 0.1102 | 0.1669 | 0.2 |
