Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 2 — 2.025 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

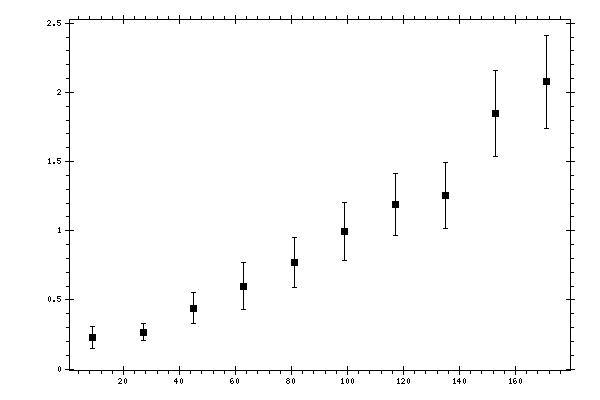

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.2311 | 0.0345 | 0.0717 | 0.0796 |
| 27 | 0.2655 | 0.0298 | 0.0547 | 0.0623 |
| 45 | 0.44 | 0.059 | 0.0926 | 0.1098 |
| 63 | 0.5999 | 0.0585 | 0.1577 | 0.1682 |
| 81 | 0.7709 | 0.036 | 0.1785 | 0.1821 |
| 99 | 0.9944 | 0.0487 | 0.2011 | 0.207 |
| 117 | 1.1885 | 0.0562 | 0.2183 | 0.2254 |
| 135 | 1.2563 | 0.0625 | 0.2298 | 0.2381 |
| 153 | 1.8475 | 0.1084 | 0.2949 | 0.3142 |
| 171 | 2.0765 | 0.1743 | 0.2852 | 0.3343 |
