Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 2.025 — 2.05 GeV | |
| Ebeam : | 5.754 GeV |
|

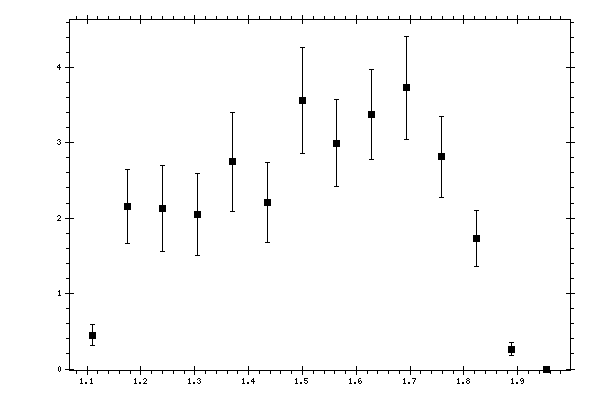

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.110256 | 0.4497 | 0.0512 | 0.1349 | 0.1443 |
| 1.175084 | 2.1597 | 0.1761 | 0.4571 | 0.4898 |
| 1.239911 | 2.1262 | 0.1484 | 0.5467 | 0.5665 |
| 1.304739 | 2.0475 | 0.1578 | 0.5248 | 0.548 |
| 1.369567 | 2.748 | 0.2989 | 0.5843 | 0.6563 |
| 1.434394 | 2.2079 | 0.149 | 0.5091 | 0.5305 |
| 1.499222 | 3.5594 | 0.3368 | 0.621 | 0.7065 |
| 1.56405 | 2.992 | 0.2275 | 0.5321 | 0.5787 |
| 1.628878 | 3.3691 | 0.2565 | 0.5391 | 0.597 |
| 1.693705 | 3.7263 | 0.3344 | 0.5924 | 0.6803 |
| 1.758533 | 2.816 | 0.2034 | 0.497 | 0.537 |
| 1.823361 | 1.7298 | 0.1947 | 0.3111 | 0.367 |
| 1.888188 | 0.2613 | 0.0351 | 0.0812 | 0.0885 |
| 1.953016 | 0 | 0 | 0 | 0 |
